LALIZAS Pneumatic Line Throwing Device, SOLAS/MED/USCG, Set

  • Developed and manufactured in-house by LALIZAS for optimal performance and reliability
  • For ship-to-ship or ship-to-shore line deployments, water rescues etc.

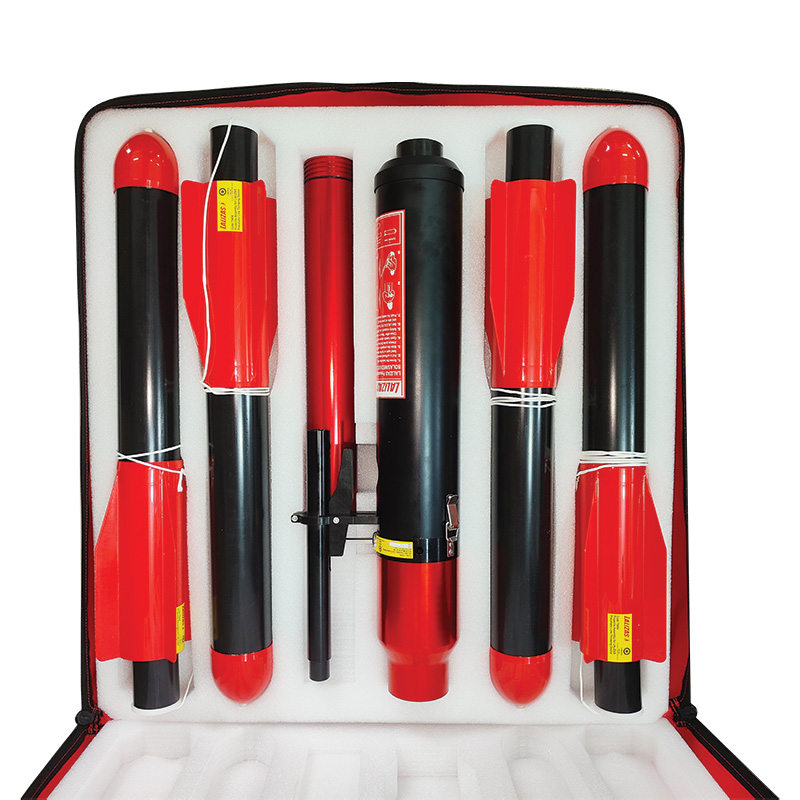

  • Equipped with 4 rope prefilled projectiles and capable of firing each projectile over 230 m, complying with the requirements of Resolution MSC. 48(66) (LSA Code)
  • The projectile is ejected from the thrust created by the instant release of compressed air from the air cylinder, making it safe for use even in flammable areas.
  • A fully charged air cylinder (200 bar) can supply up to 4 maximum-range shots for the LALIZAS PLT device
  • Aerodynamic projectile shape ensures minimum wind effect during operation
  • SOLAS/MED/USCG approved
  • Complies with Resolution MSC.81 (70) as amended

    VALUE FOR USER

  • Operated by compressed air instead of pyrotechnics facilitating transportation and storage globally
  • The air cylinder is fully compatible with any 200 bar refill station for breathing air systems, provided the correct DIN 200 bar adapter is used
  • The rechargeable compressed air cylinder allows for crew training with minimal to no material costs
  • Significant economic benefit through lower long-term operational cost (no expiration date, minimised maintenance)
  • Availability of spare parts:

    - Projectile Assembly for LALIZAS Pneumatic Line Throwing Device (75454)
    - Air Cylinder Assembly for LALIZAS Pneumatic Line Throwing Device (75455)
Slika Kod Volume Material Bag Size Total Bag Weight Finish Minimum Shots Shooting Chamber Pressure Cylinder Air Pressure

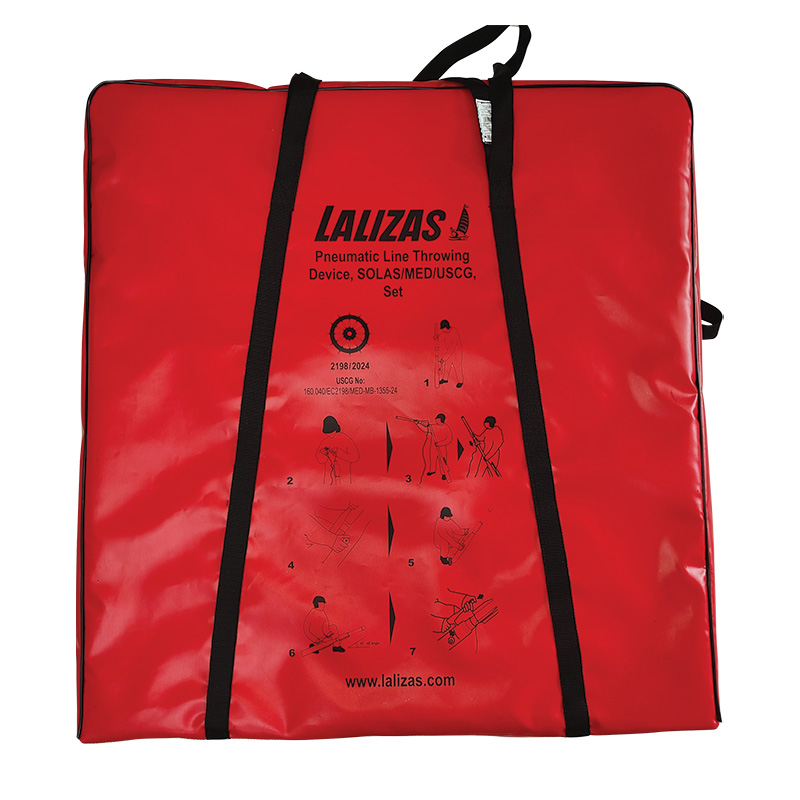

  75295 2 L Aluminum, Stainless Steel, POM, ABS 810 x 765 x 225 mm 17 kg Hard Anodised 4 projectiles approx. 80Bar Steel 200 bar
